nitonakrętki /
Nitonakrętki aluminiowe
z kołnierzem

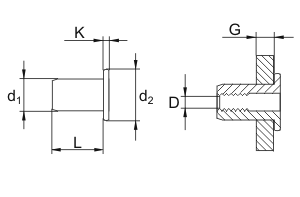

| D | G [mm] |
L [mm] |
L1 [mm] |
Ø d1 [mm] |
Ø d2 [mm] |
K [mm] |
Wiertło Ø |
Opakowanie | KOD | |
| M3 | TP-C | 0,3 - 1,8 | 9,0 | 4,2 - 4,6 | 4,9 | 7,0 | 0,8 | 5,0 | 500 | 083913TPC |
| TP-L | 1,8 - 3,0 | 10,5 | 500 | 083923TPL | ||||||
| M4 | TP-C | 0,3 - 2,5 | 11,0 | 5,5 - 6,0 | 5,9 | 9,0 | 1,0 | 6,0 | 500 | 083914TPC |
| TP-L | 2,5 - 4,0 | 13,0 | 500 | 083924TPL | ||||||
| M5 | TP-C | 0,5 - 3,0 | 13,0 | 7,2 - 7,7 | 6,9 | 10,0 | 1,2 | 7,0 | 500 | 083915TPC |
| TP-L | 3,0 - 5,0 | 15,5 | 500 | 083925TPL | ||||||
| M6 | TP-C | 0,5 - 2,3 | 14,5 | 7,6 - 8,2 | 8,9 | 12,0 | 1,5 | 9,0 | 250 | 083916TPC |
| TP-M | 2,3 - 4,0 | 16,0 | 250 | 083926TPM | ||||||
| TP-L | 4,0 - 6,0 | 17,5 | 250 | 083936TPL | ||||||
| M8 | TP-C | 0,8 - 3,5 | 17,5 | 9,5 - 10,1 | 10,9 | 15,0 | 1,5 | 11,0 | 250 | 083918TPC |
| TP-L | 3,5 - 6,0 | 20,0 | 250 | 083928TPL | ||||||
| M10 | TP-C | 1,0 - 3,5 | 19,0 | 10,7 - 11,5 | 11,9 | 16,0 | 1,7 | 12,0 | 150 | 0839110TPC |
| TP-L | 3,5 - 6,0 | 22,0 | 150 | 0839210TPL |
