CENTRUM DYSTRYBUCJI
|
nitonakrętki /
Nitonakrętki stal nierdzewna
(A2) z kołnierzem

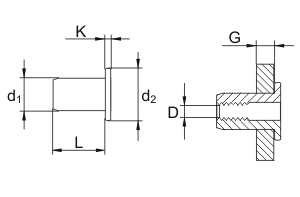

| D | G [mm] |
L [mm] |
L1 [mm] |
Ø d1 [mm] |
Ø d2 [mm] |
K [mm] |
Wiertło Ø |
Opakowanie | KOD | |
| M3 | TP-C | 0,3 - 1,0 | 8,5 | 5,5 - 5,8 | 4,9 | 6,0 | 0,8 | 5,0 | 500 | 085913TPC |
| TP-M | 1,0 - 2,0 | 9,5 | 500 | 085923TPM | ||||||
| TP-L | 2,0 - 3,0 | 10,5 | 500 | 085933TPL | ||||||
| M4 | TP-C | 0,3 - 2,5 | 11,0 | 5,9 - 6,4 | 5,9 | 8,0 | 1,0 | 6,0 | 500 | 085914TPC |
| TP-L | 2,5 - 4,0 | 13,0 | 500 | 085924TPL | ||||||
| M5 | TP-C | 0,5 - 3,0 | 13,0 | 7,3 - 7,8 | 6,9 | 9,0 | 1,2 | 7,0 | 500 | 085915TPC |
| TP-L | 3,0 - 5,0 | 15,5 | 500 | 085925TPL | ||||||
| M6 | TP-C | 0,5 - 2,3 | 14,5 | 8,3 - 8,8 | 8,9 | 11,0 | 1,5 | 9,0 | 250 | 085916TPC |
| TP-M | 2,3 - 4,0 | 16,0 | 250 | 085926TPM | ||||||
| TP-L | 4,0 - 6,0 | 17,5 | 250 | 085936TPL | ||||||
| M8 | TP-C | 0,8 - 3,5 | 17,5 | 10,5 - 11,2 | 10,9 | 14,0 | 1,5 | 11,0 | 250 | 085918TPC |
| TP-L | 3,5 - 6,0 | 20,0 | 250 | 085928TPL | ||||||
| M10 | TP-C | 1,5 - 3,0 | 19,0 | 11,6 - 12,3 | 11,9 | 15,0 | 1,7 | 12,0 | 150 | 0859110TPC |
| TP-M | 3,0 - 4,5 | 20,5 | 150 | 0859210TPM | ||||||
| TP-L | 4,5 - 6,0 | 22,0 | 150 | 0859310TPL |
